#51 2018-12-12 19:47:05

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Constant flow of the Amine solution from the bubbler tank to the heating chamber  via pumps once saturated for releasal and then back through a cooling heat exchanger before send it back into the bubbler chamber to capture more co2. Pump the co2 gas from the heated chamber to be pressurized and cool as we will want to liquify it. Night time would have a cool loop to save the night cold for day time cooling use for both the co2 stage and for cooling the Amine solution for reuse.

Offline

#52 2018-12-13 18:42:45

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

http://www.tcmda.com/en/Technology/Amine-technology/

http://science.sciencemag.org/content/3 … /1652.full

Amine scrubbing has been used to separate carbon dioxide (CO2) from natural gas and hydrogen since 1930. It is a robust technology and is ready to be tested and used on a larger scale for CO2 capture from coal-fired power plants. The minimum work requirement to separate CO2 from coal-fired flue gas and compress CO2 to 150 bar is 0.11 megawatt-hours per metric ton of CO2.

https://web.anl.gov/PCS/acsfuel/preprin … 2_0012.pdf

Offline

#53 2018-12-13 21:07:24

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

People produce carbon dioxide while breathing and it is a the major pollutant in the premises. A typical human exhales about 1 kg of carbon dioxide per day. During sleeping in the high altitude chamber or tent one person produces(exhales) about 5,27 gallons /24 l CO2 per hour. During training in the high altitude training chambers and tents  CO2 hour production rate can be 50 gallons /240 l of pure carbon dioxide(CO2) or even more. That is why CO2 level in the high altitude training facilities in most cases reaches 0,5% or even 1% CO2. ASHRAE recommends indoor CO2 levels not exceed 0,1%. During training/ exercise, the CO2 breath out from the athletic is more than 5000ppm. Without the CO2 scrubber, the CO2 level in the chamber can goes to 7000ppm in very short time. It is not health to athletic. Normal accepts level during exercise is <2000ppm.

https://www.bre.com/PDF/The-Use-of-MDEA … emoval.pdf


Example of what would be used in a room on a mars surface.
http://www.aminescrubber.com/images/AmineScrubber.pdf

Offline

#54 2018-12-13 21:37:09

kbd512
Moderator
Registered: 2015-01-02
Posts: 2,995

Re: In-Situ Propellant Production, design a opensource demonstrator

SpaceNut,

I'm not sure how these atmospheric scrubbers translate into something we can use to liquefy CO2 if the primary power consumption issue is with the pump itself.  Is there a practical way to adsorb and then release enough gaseous CO2 for the LOX/LCH4 plant to operate continuously when the propellant production rate is around 1 ton per day?,  Those scrubbers indicate a cycle time is 2 to 4 hours.  If there is, then why don't any of the ISPP plants purport to use gaseous CO2?  I think we have to bite the bullet on this one and supply enough power.

I was hoping there was a free lunch somewhere in our new technology, but there never seems to be one available.

Offline

#55 2018-12-13 22:20:09

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Still searching for what will be the best options.
https://ntrs.nasa.gov/archive/nasa/casi … 016419.pdf
Compact and Lightweight Sabatier Reactor for Carbon Dioxide Reduction

https://ntrs.nasa.gov/archive/nasa/casi … 007818.pdf
Mars Atmospheric Conversion to Methane and Water: An Engineering Model of the Sabatier Reactor with Characterization of Ru/Al2O3 for Long Duration Use on Mars

Offline

#56 2018-12-14 17:13:40

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

The inlet to a sabatier reactor is 5 to 7 bar or 75 psi to 100 psi for the CO2 going into it and it should be warm so as to allow the chamber temperature to be in the 200 to 400 range for best conversion. So we are as you put it need to solve for how to get what we need at less energy.

For a mars day we will have 9 hours of daylight and 16 hours of night temperature to make use of give or take and we can use concentrators for the day to elevate the temperatures on the chambers being used for co2 compession and pressurization. Sure its a slow cycle but its free energy.

Offline

#57 2018-12-15 09:25:00

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Offline

#58 2018-12-15 19:51:13

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Offline

#59 2018-12-16 19:00:50

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Scientists identify new minerals for carbon capture

The minerals, members of the hydrotalcite group, are the first outside of the carbonate family to naturally capture atmospheric CO2 in mine waste, important as society continues to forge ways to lower our carbon emissions and combat climate change.

"This research confirmed that hydrotalcites are capable of sequestering atmospheric CO2 in mine waste," said Connor Turvey, who conducted this research during his PhD studies under the supervision of Sasha Wilson. "Hydrotalcites are trapping the CO2 deeper into the tailings where carbonate minerals were unable to form."

Low-cost catalyst boosts hydrogen production from water

"Our new catalyst is made from copper, nickel and chromium, which are all more abundant and less costly than platinum," says Cao-Thang Dinh, a co-lead author on the paper along with his fellow postdoctoral researchers Pelayo Garcia De Arquer and Ankit Jain. "But what's most exciting is that it performs well under pH-neutral conditions, which opens up a number of possibilities."

Seawater is the most abundant source of water on earth, Dinh points out. But using seawater with traditional catalysts under acidic conditions would require the salt to be removed first, an energy-intensive process. Operating at neutral pH avoids the high cost of desalination.

Offline

#60 2019-06-29 20:42:55

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Was reminded that we could use Nitroxide and Propane for use as fuels in the technology topic for what we need.

Did a bit of searching and found that propane has a bit more kick for mass and does not need to be cryro genic for store and use just under high pressure. The reference article also indicated that the same was true for the oxidizer for use.

Abstract for Mars Sample Return Using In-Situ Propellant Production

Development of a Two-Stage Mars Ascent Vehicle Using In-Situ Propellant Production

Propane in particular offers comparable performance to methane without requiring cryogenic storage. The total MAV mass would be 119.9 kg to carry an 11 kg payload to orbit.

Mars temperature averages at around -55 deg C (218 K) with diurnal temperature swings of 100 K.

That said mining is another important element for man to stay.

Mars ISRU: State-of-the-Artand System Level Considerations

Marco polo is meantioned in document...

Offline

#61 2019-06-29 22:04:33

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Getting the oxidizer is as difficult if its too energy needing.

Plasma Extraction of Oxygen from Martian Atmosphere

Making it possible with a micowave plasma chamber...

https://blink.ucsd.edu/safety/research- … toxic.html

using boiloff to pressurize the tanks
http://www.holderaerospace.com/download … erview.pdf

https://www.spaceflightinsider.com/miss … opellants/

Offline

#62 2019-10-13 21:13:23

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Found the ATK baseline here
http://fiso.spiritastro.net/telecon16-1 … 2-1-17.pdf
pg 17 for the 10kwh size reactor

Solar version:
• 4X 5.6m Ultraflex arrays
• Daytime ISRU only (1098 days to produce 4400 kg LOX*)
• Requires 4X 7.5m arrays and 1100 kg Li batteries for day/night ISRU ops excluding dust storm (527 days to produce 4400 kg LOX*)


https://ntrs.nasa.gov/archive/nasa/casi … 000235.pdf
Design of photovaltaic power system for precursor mission for human exploration of mars

Offline

#63 2019-10-14 06:35:01

tahanson43206
Member
Registered: 2018-04-27
Posts: 1,264

Re: In-Situ Propellant Production, design a opensource demonstrator

For SpaceNut re #62

Thanks for the link to the NASA paper.  ATK's work is cited frequently.

The paper is encouraging but cautious... While much of the presumed technology has been demonstrated, much has not, and (it appears) a great deal of work needs to be done before a propellant manufacturing system is ready for deployment to Mars.

https://ntrs.nasa.gov/archive/nasa/casi … 000235.pdf

(th)

Offline

#64 2019-10-14 08:51:16

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

The real work has to do with the power and mass reductions needed to have the ability to get it to mars since we can not land currently with retro propulsion to the surface from orbit only the final mile after parachuting. This is also mass limited via diameter of the heat shield to creat lift or drag to slow the ship in a very thin atmosphere.

http://fiso.spiritastro.net/telecon/Pap … 6-7-17.pdf
The planet comparison property table gives a density of approximately 1/60th of earths for a cubic meter.

The key to a solar use is not a large array but multiple arrays with many batteries at each of the nodes to aid in the creation of a grid of power such as we do on earth so as to be able to give power into the grid to compensate for those not creating as much as the others.

page 5 is where you find why the atk would be the better option for mars as its got the built in ability to width stand the mars winds, can clean the dust off ect...no extra robots and framing on the ground...

pg 25 shows the typical mars level landing field.. ouch not to level for large anything without the support foot print to keep from topling.

notice on page 26 the following of dust levels to the oposite of increasing solar energy tracking....

pg29 shows the dust is low to the ground for its density and fades as it rises above the ground.

Offline

#65 2019-10-14 09:42:37

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

The mars ispp lander from nasa has been posted here in the past just not sure of the topic of MIP.

The MIP consists of a 3x3 meter, octagonal lander which will house an atmosphere processing module, a fuel liquefaction module, a water processing module, a water cleanup module, and a soil processing module. Labscale - demonstration MIP lander components have been developed and constructed as a NASA cross-center effort.

https://www.nasa.gov/pdf/203084main_ISR … 7%20V3.pdf
NASA Lunar In-Situ Resource Utilization (ISRU) Development & Incorporation Plans

https://ntrs.nasa.gov/archive/nasa/casi … 004402.pdf
Human Mars Lander Design for NASA’s Evolvable Mars Campaign

https://ntrs.nasa.gov/archive/nasa/casi … 033701.pdf

https://www.lpi.usra.edu/meetings/isru97/pdf/2401.pdf

https://ntrs.nasa.gov/archive/nasa/casi … 005871.pdf

https://www.nasa.gov/sites/default/file … -24-16.pdf

https://ntrs.nasa.gov/archive/nasa/casi … 002987.pdf

Offline

#66 2019-10-14 13:27:30

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

The purpose of In-Situ Resource Utilization (ISRU), or “living off the land”, is to harness and utilize space resources to create products and services which enable and significantly reduce the mass, cost, and risk of near-term and long-term space exploration. Which provide the means to support and stay as part of mans long term goals of space exploration.

https://space.nss.org/media/2005-ISRU-roadmap.pdf
NASA In-Situ Resource Utilization (ISRU) Capability Roadmap Final Report May 19, 2005

http://www.marsjournal.org/contents/200 … ke2005.pdf
NASA In-Situ Resource Utilization (ISRU) Capability Roadmap Executive Summary

https://www.nasa.gov/sites/default/file … s_isru.pdf
In-Situ Resource Utilization (ISRU) Capabilities

For every 1 kg landed on Mars, 7.5 to 11 kg has to be launched into orbit from Earth.
23 mT of oxygen and 6.5 mT of methane propellants are needed for the Mars crewed ascent vehicle. This equates to the payload mass of 3 to 5 SLS launches

Which is why we will not be bringing stuff to mars that makes it so we cannot stay. Sure we can return short stay but thats not what we want.

Potential Lunar Resource Product Needs
‒2,000 kg oxygen (O2) per year for life support backup (crew of 4)
‒3,500 kg of O2per lunar ascent module launch from surface to low lunar orbit
‒16,000 kg of O2per reusable lunar lander ascent/descent vehicle to L1/L2 (fuel from Earth)*
‒30,000 kg of O2/Hydrogen (H2) per reusable lunar lander to L1/L2 (no Earth fuel needed)*

Potential Mars Resource Product Needs
‒20,000 kg to 25,000 kg of oxygen (O2) per ascent mission (~2 kg/hr)
‒5700 kg to 7150 kg of methane (CH4) per ascent mission
‒14,200 kg of water (H2O) per ascent mission


https://rascal.nianet.org/wp-content/up … zation.pdf
Mobile In-Situ Water Extractor (MISWE) for Mars, Moon, and Asteroids In Situ Resource Utilization

Offline

#67 2019-10-14 16:29:24

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

Sorry all for the data mining of documents for information for the subjects of Mars for Man.

https://sciences.ucf.edu/class/wp-conte … chesV1.pdf
Human Mission Architectures and Approaches and Concepts for IncorporatingIn Situ Resource Utilization (ISRU)

Every 1 kg of propellant made on the Moon or Mars saves 7.4 to 11.3 kg in LEO

For large payloads to mars means not using parachutes to go with when we need retro propulsion to land with.

14.2 MT of Mars water per mission requires excavation of a Football field to a depth of 1.1 to 9.6 cm! (30% to 3% water by mass) Excavation rates required for 14.2 MT H2O/mission production range based on water content
– Hydrated soil (3%): 41 kg/hr
– Icy soil (30%): 4 kg/hr

pg 18 gives and idea for what can be done as we process the consumed aspects of a mars mission
pg 20 is The Chemistry of Mars ISRU and steps for making what we need
pg 42 gives the processing and from what source to get the much needed water, oxygen

Mars sustainability, backup and mobility future via fuel cell use

Life Support Backup (DRM 3)
4500 kg of O2
3900 kg of N2
23,200 kg of water (H2O)

Mobile Power
Fuel cell and reactant storage
Amount: 1000 kg O2& 350 kg CH4per 14 day traverse

Habitat Backup Power
Fuel Cell reactants for Dust Storms
14.8 KW at up to 120 days
Amount: 21 mT O2& 9 mT CH4



https://www.aaai.org/Papers/Symposia/Sp … 04-002.pdf
Model Checking Autonomy Models for a Martian Propellant Production Plant

www.sei.aero/archive/SEI_ISRU_Market_ISDC_25May2007_vA.pdf
ECONOMIC ANALYSIS OF LUNAR PROPELLANT PRODUCTION:

https://www.lpi.usra.edu/meetings/marsc … f/4208.pdf
EARLY IN-SITU RESOURCE UTILIZATION (ISRU) LEADING TO ROBUST SAMPLE RETURN AND HUMAN EXPLORATION MISSIONS.

Offline

#68 2019-10-14 17:39:59

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

  • Location
    Moon
    Product Amount (kg)Need/Time Use
    O2 1000 Per Year Crew Breathing - Life Support Consumable Make up
    O 23000 - 35002x Per Year Non-Reusable Crew Ascent Vehicle Propulsion - Surface to Low Lunar Orbit: Earth fuel
    O2~160002x Per Year Reusable Ascent/Descent Propulsion - Surface to L1/L2: Earth Fuel (4000 kg payload)
    O2/H2~30,0002x Per Year Reusable Ascent/Descent Propulsion - Surface to L1/L2 (4000 kg payload)
    H2O 150,0002x Per Year Lunar Human Outpost & Reusable Transportation
    O2/H2 150,000 Per Year Anount needed for Propellant Delivery to LDRO for Human Mars Mission

    Mars
    O2/CH4 22,728/6978 Per Use/1x 480 Days Non-Reusable Crew Ascent Vehicle Propulsion - Surface to High Mars Orbit
    O2/CH4 59,000/17,100 Per Use/1 or2x Per Yr Reusable Ascent/Descent Propulsion - Surface to Mars Orbit
    H2O 3,075Surface/500 DaysLife Support System Closure
    H2O 15,700 Per Use/1x 480 Days Extracted
    H2O to Make Non-Reusable Ascent Vehicle Propellant
    H2O 38,300 Per Use/1 or2x Per Yr Extracted
    H2O to Make Reusable Ascent/Descent Vehicle Propellant

Offline

#69 2019-10-14 18:50:44

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

An important part of any system that takes in a very dusty mars air at times....

https://ntrs.nasa.gov/archive/nasa/casi … 005058.pdf
Martian Atmospheric Dust Mitigation for ISRU Intakes via Electrostatic Precipitation

https://www.nasa.gov/sites/default/file … -24-16.pdf
Mars Water In-Situ Resource Utilization (ISRU) Planning (M-WIP) Study
I see this one has 4x kilowatt power plants in one of the pages....

Of course this what we need to even get fuel creation from the atmosphere and that is because we have landed and are ready to go home in time.
https://ntrs.nasa.gov/archive/nasa/casi … 016019.pdf
Mars Ascent Vehicle Design Considerations

MARCO POLO is a NASA ISPP experiment to produce LOX/LCH4 using Martian regolith and atmosphere.

http://kiss.caltech.edu/workshops/isru/ … anders.pdf
Mars ISRU: State-of-the-Art and System Level Considerations

MOXIE is just a SOXE and O2 liquefaction experiment.

MARCO POLO is a complete ISPP plant.

https://mepag.jpl.nasa.gov/meeting/2011 … -06-16.pdf

https://ntrs.nasa.gov/archive/nasa/casi … 023504.pdf

https://wordlesstech.com/marco-polo-mars-pathfinder/


MARCO POLO is a robotic technology demonstration mission comprised of an octagonal lander and mobile robot, which process Martian soil and atmosphere to produce O2, H2O and CH4.

https://ntrs.nasa.gov/archive/nasa/casi … 008610.pdf

https://ntrs.nasa.gov/archive/nasa/casi … 001775.pdf

New topic created by louis based on link post

wrote:

What is required in terms of mass to produce enough propellant on Mars for a return Starship?

This is an interesting analysis from Blake on Reddit:

https://www.reddit.com/r/spacex/comment … ant_plant/

He comes up with a combined figure of only 74 tons for both a 1 Mwe Propellant Production Facility and the mass of the PV facility generating the power for the process.

Offline

#70 2019-10-16 22:43:48

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

http://www.niac.usra.edu/files/studies/ … ngland.pdf
Mars Atmosphere Resource Recovery System

https://www.stirlingcryogenics.eu/files … cation.pdf
Stirling Cryogenics liquid air plant

Offline

#71 2019-10-22 20:55:13

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Offline

#72 2019-10-23 03:38:13

elderflower
Member
Registered: 2016-06-19
Posts: 1,147

Re: In-Situ Propellant Production, design a opensource demonstrator

I note that the Awesom Co appears to have a pallet depot on Mars. Would that be a subsidiary of the ACME Corporation?

Offline

#73 2019-10-23 04:08:17

tahanson43206
Member
Registered: 2018-04-27
Posts: 1,264

Re: In-Situ Propellant Production, design a opensource demonstrator

For elderflower re #72

Thanks for the trip down memory lane!

https://en.wikipedia.org/wiki/Acme_Corporation

(th)

Offline

#74 2019-10-23 04:09:41

elderflower
Member
Registered: 2016-06-19
Posts: 1,147

Re: In-Situ Propellant Production, design a opensource demonstrator

Look out for coyote shaped impact craters!

Offline

#75 2019-10-23 19:45:02

SpaceNut
Administrator
From: New Hampshire
Registered: 2004-07-22
Posts: 16,557

Re: In-Situ Propellant Production, design a opensource demonstrator

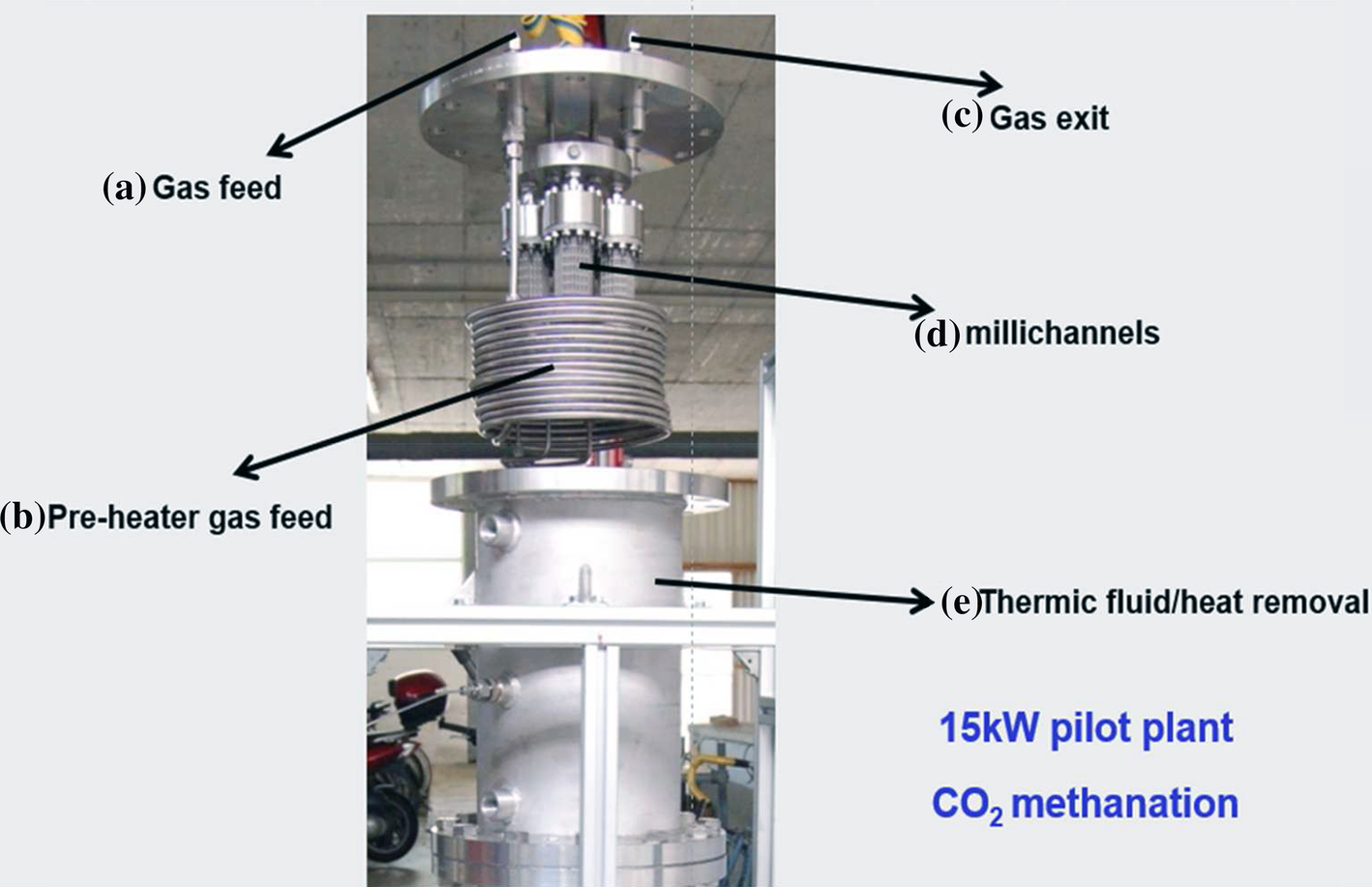

https://learn.openenergymonitor.org/sus … er-process

We have another method to make methane with our waste stream as well Make a Biogas Generator to Produce Your Own Natural Gas

Sure we will not have many grass clippings but once we are gardening we will have waste from the no so edible parts of the pants to make use of, food waste as I am sure left overs will not be as good and its going to be a long time to livestock manure for a renewable source of biogas energy with a homemade biogas generator.

Offline

Board footer

Powered by FluxBB
